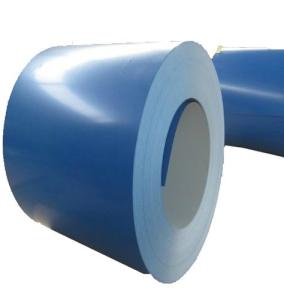

Blue Color Prepainted Galvanized Steel Coil For Roofing

1.Coil ID: 508mm-610mm

2.Coil Weight: according to the customer's request

3.Surface protection: PE, PVDF, SMP, HDP, etc.

4.Surface treatment: chromate, oil/unoil, bright finish, spangle, anti-finger print

Standard

GB/T-12754: 2006, JIS3302, EN 10142, ASTM A653, JIS G3302, SGCC/SGCH, GB/T2518,

European Standard, ASTM A792, JIS G3321, JIS G3317

Base Plate

Cold rolled steel sheet, hot dipped zinc coated steel sheet, hot dipped A-Z coated

steel sheet

Equipment

Double coating double baking; three coating three painting

Capacity

500,000Mt/year

Size

Thickness 0.12mm-2mm, width 914mm-1250mm

Paint THickness

Top:13μm-25μm, back:5-7um

Coil Weight

3Mt-6Mt

Coil ID

φ508mm-φ610mm

Surface Paint

EP, PE, HDP, SMP, PVDF

Color Series

RAL color number series

Surface Type

Printed, embossed, corrugated

1.Buildings and constructions: roofing, ceilings, gutters, venting lines, indoor decorations, window frames, etc.

2.Electrical appliances: computer shells, washing machines, refrigerators, dehumidifiers, video recorders, water heaters, etc.

3.Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels, etc.

4.Vehicle parts: back-seat plates of buses and trucks, conveying systems, oil tanks, etc.

1.Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanizeed Steel Sheet.

2.High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.

3.Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.

4.Versatility: can be used in the various areas.
